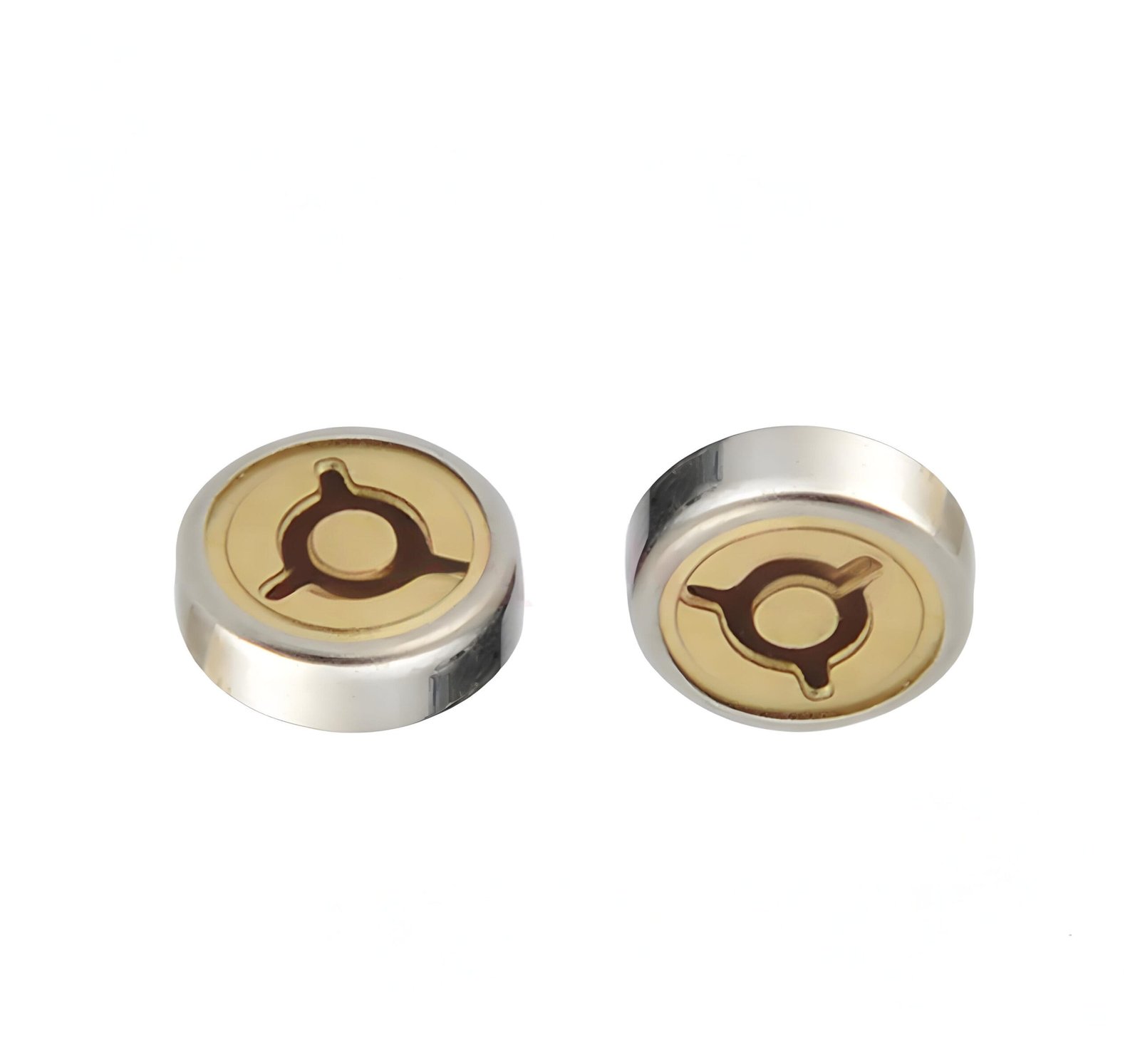

3013 microphone patch microphone for Bluetooth earphones

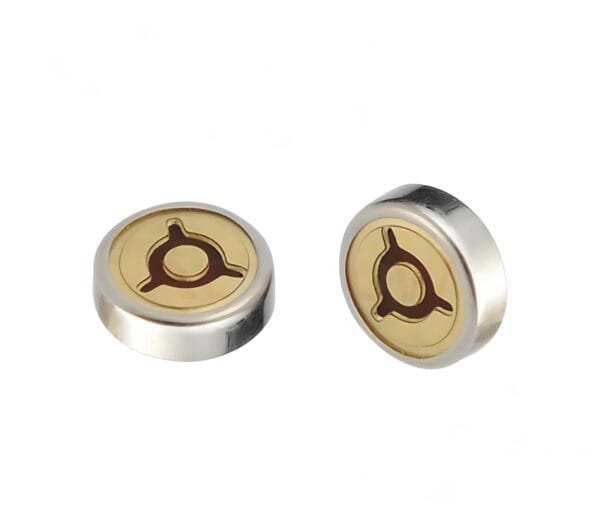

3013 microphone patch microphone for Bluetooth earphones - Image 2

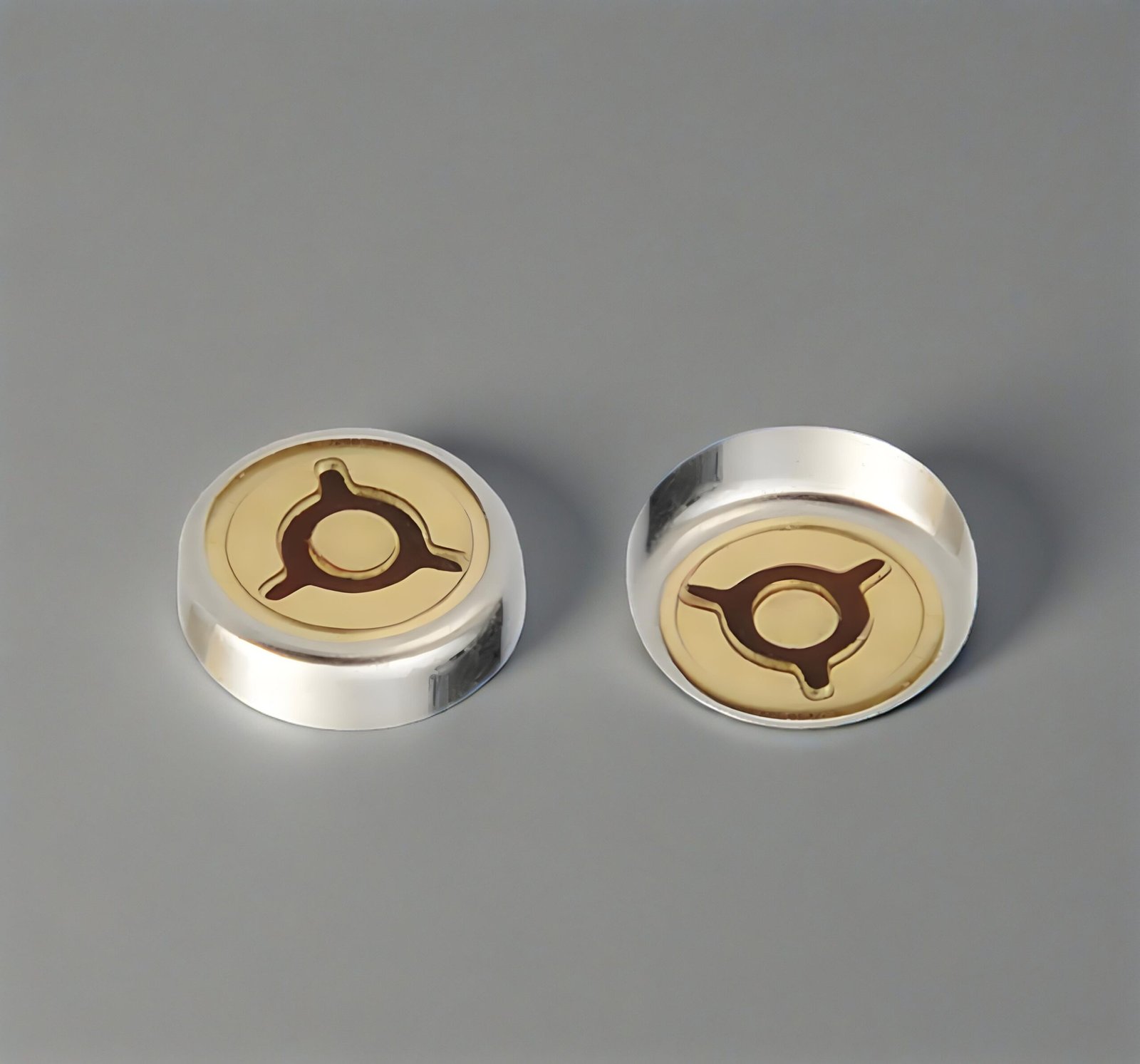

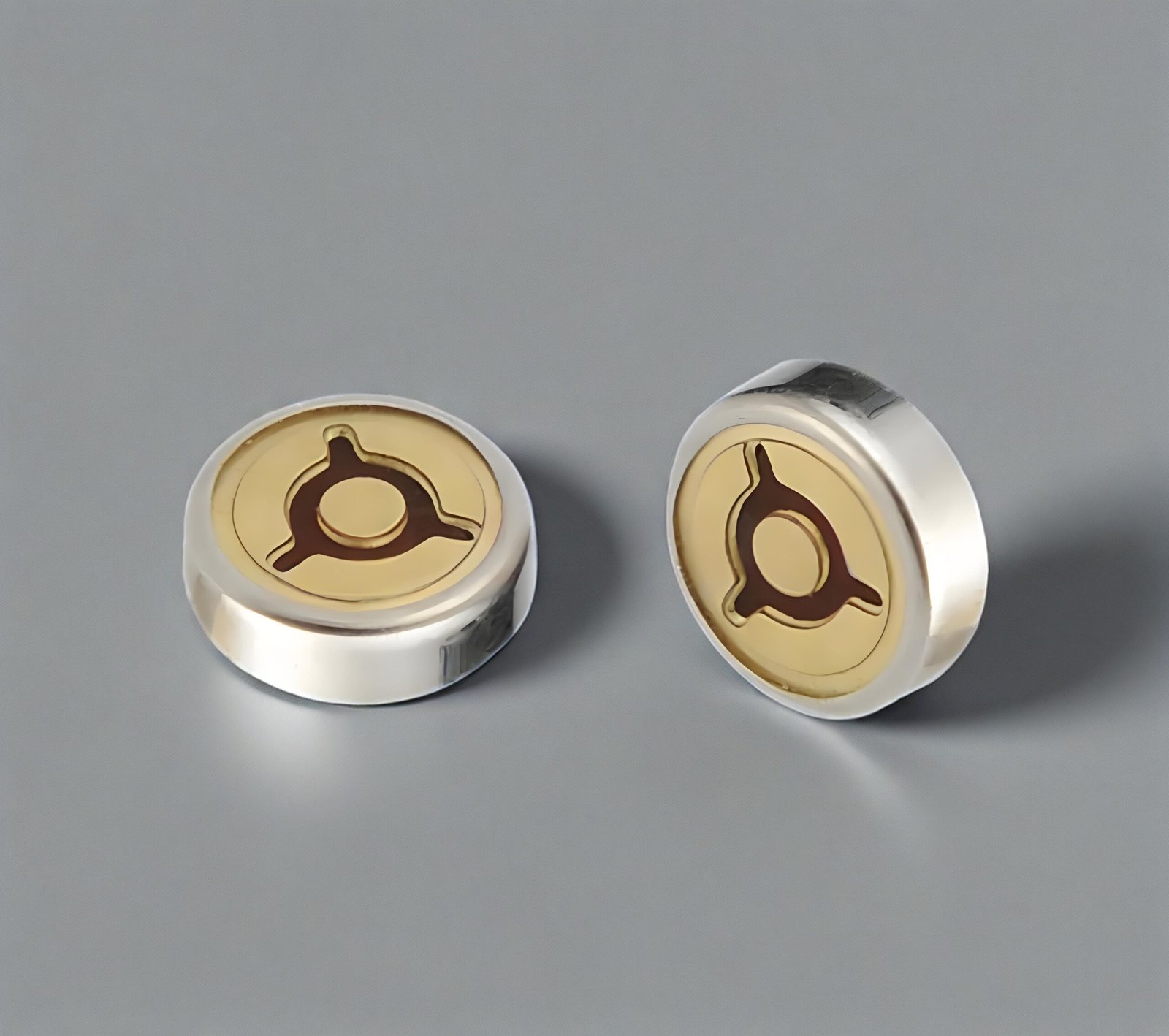

3013 microphone patch microphone for Bluetooth earphones - Image 3

3013 microphone patch microphone for Bluetooth earphones

3013 patch microphone head
model: AS-B3013-SMD
Type: Electret microphone head (patch)
Number of channels: 2.1 channels
Signal to noise ratio: 52 dB (minimum)
Sensitivity:- 42 ± 2dB (customizable)

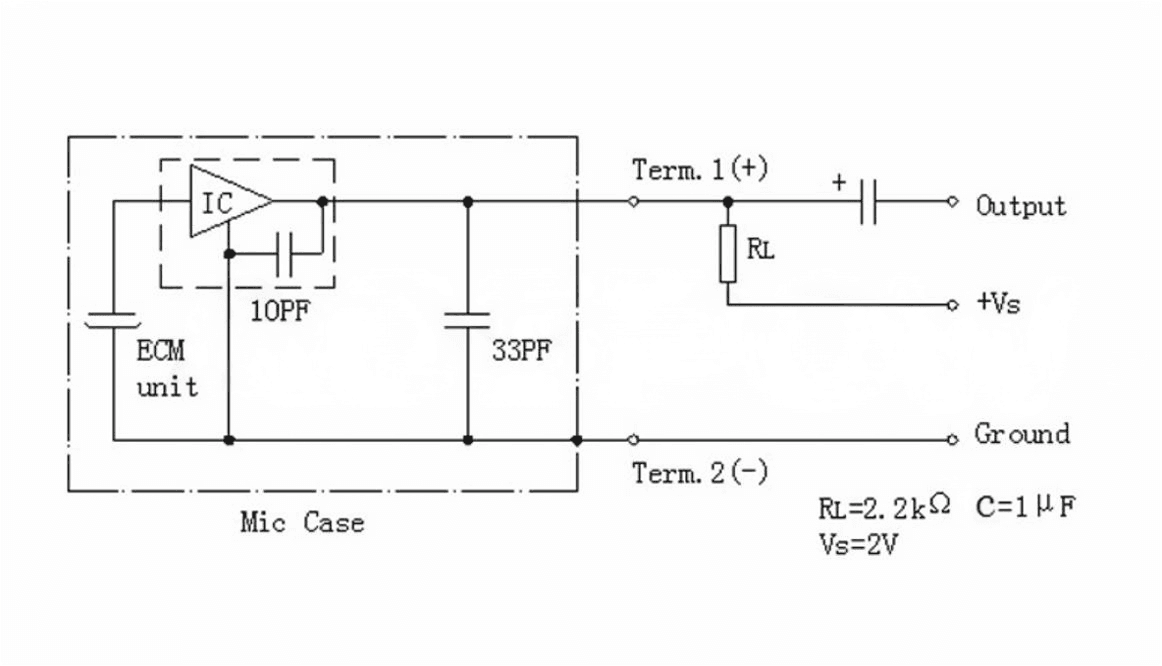

Output impedance: 2.2K Ω (ohms)

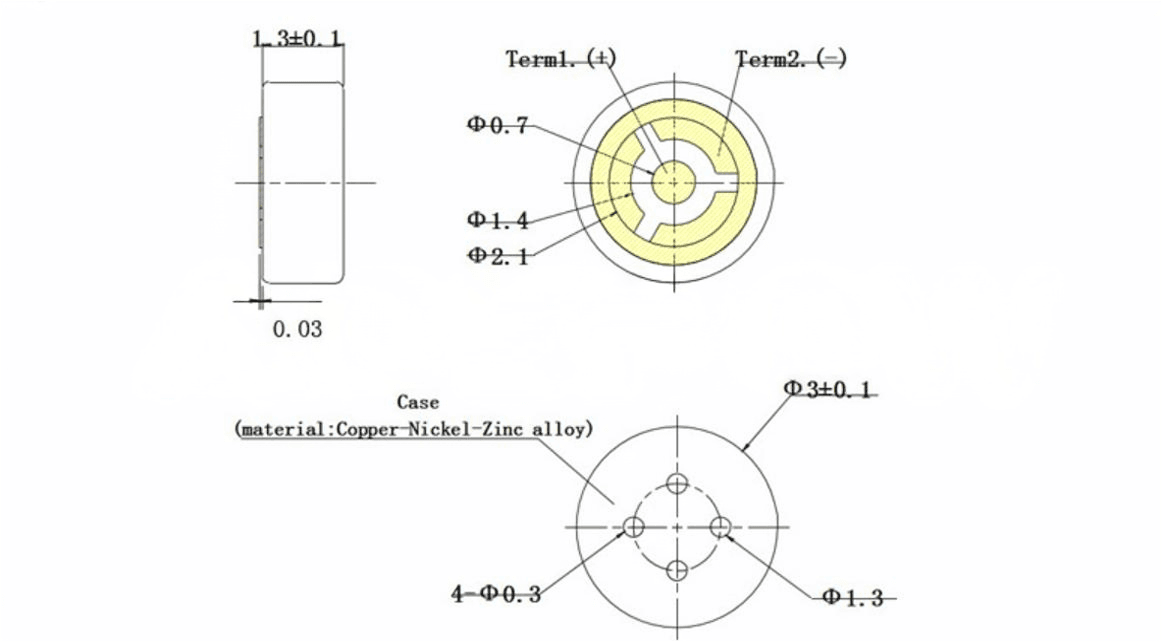

Specification size: 3.0 × 1.3 (mm)
Frequency response: 50-16000HZ
Current consumption: 500 (Max) μ A
Maximum sound pressure level: 110 dB

Categories: Omnidirectional microphone, SMD microphone

Description
Reviews (0)

Description

Hotatop is specialized in the production of electret microphones, the production of all-pointing 3013 microphone, patch microphone mic suitable for Bluetooth headset use, high temperature 3013 microphone at a reasonable price.
