6027 microphone patch microphone for Bluetooth earphones

6027 microphone patch microphone for Bluetooth earphones - Image 2

6027 microphone patch microphone for Bluetooth earphones - Image 3

6027 microphone patch microphone for Bluetooth earphones

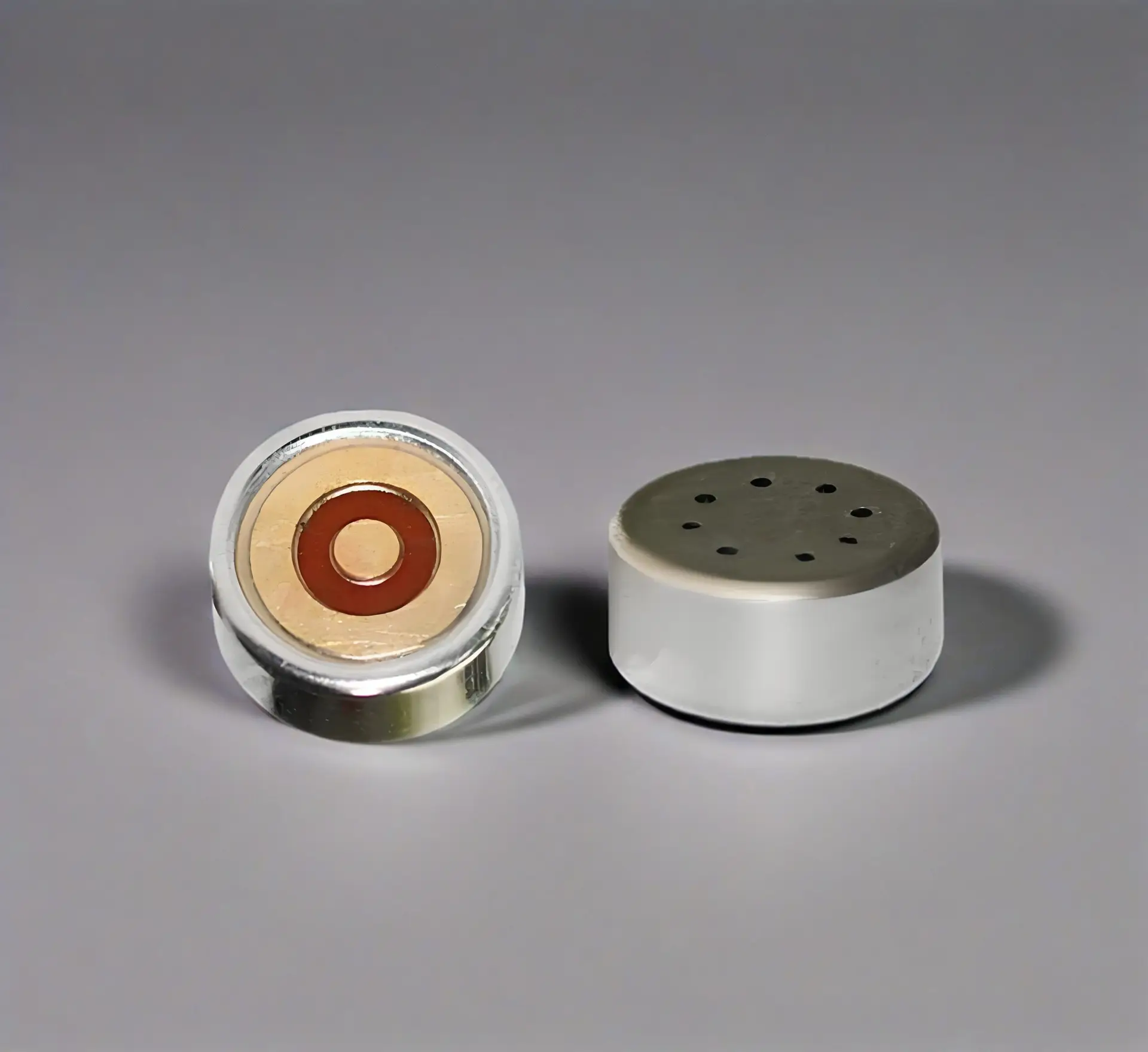

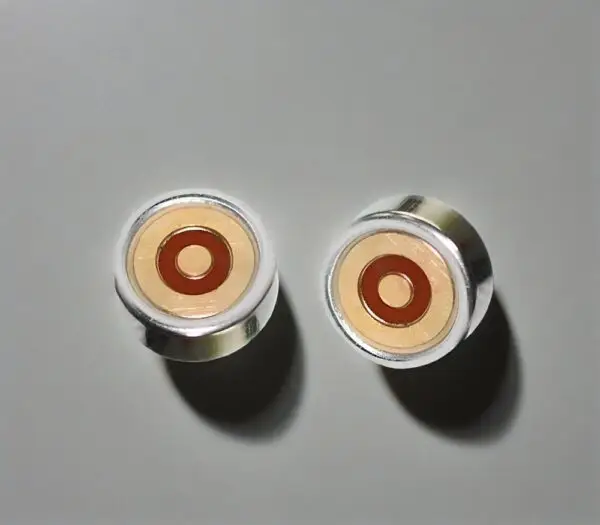

6027 patch microphone head
model: HT-B6027AL40-SMD
Type: Electret microphone head (patch)
Number of channels: Mono
Signal to noise ratio: 58 dB (minimum)
Sensitivity:- 40 ± 2dB (customizable)
Output impedance: 2.2K Ω (ohms)
Specification size: 6.0 × 2.7 (mm)
Frequency response: 20-16000HZ
Current consumption: 450 (Max) μ A
Maximum sound pressure level: 110 dB

Categories: SMD microphone, Omnidirectional microphone

Description
Reviews (0)

Description

Hotatop is a joint venture in China specializing in the production of SMD surface mount microphones and electret microphones. The 6027 surface mount microphones, SMD high-temperature resistant microphones, and 6027 dual capacitor microphones are produced and sold directly using imported environmentally friendly materials.
